Volumeter Kits

Volumeter Kits

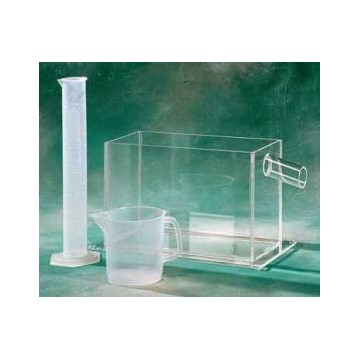

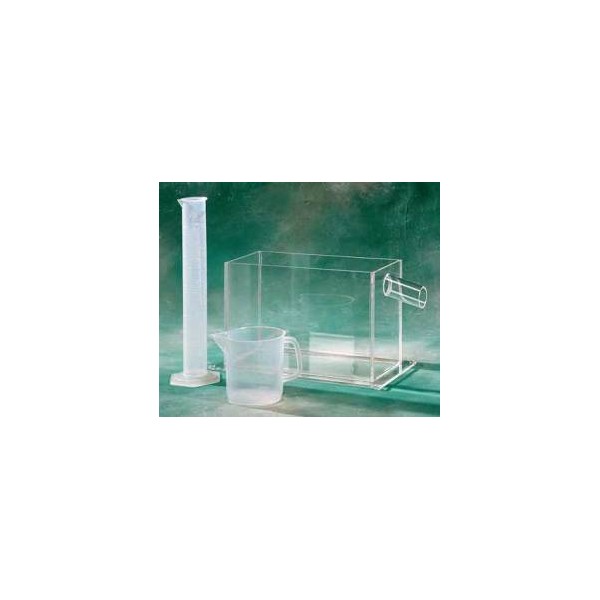

For quick, precise measurement of edema, just fill the volumeter with water, have client immerse the affected extremity, and measure the overflow in the graduated cylinder provided. Made of heavy-duty Lucite with solvent-welded, leak-proof joints. Easy-to-read overflow cylinders show no meniscus, simplifying reading. The sides of the Deluxe Volumeters are made from a single piece of Lucite, eliminating three of the four side joints. The Deluxe Volumeter sides also have a smooth, rounded top edge for greater patient comfort. Latex free.

Hand Volumeter Kit

• Deluxe Hand, Dimensions: 5"W x 3"D x 9"H
• Hand measures hand and distal forearm edema. Deluxe and economy both include receiver cup. 500ml/5ml increments.

Forearm Volumeter Kit

• Deluxe Forearm Size: 6"W x 6"D x 24"H
• Forearm intermediate size between the hand and arm. Measures edema from the hand to the elbow. Rod level adjusts for different arm lengths. Deluxe and economy both include receiver cup. 1000ml/10ml iincrements.

Arm Volumeter Kit

• Deluxe Arm, 7"W x 7"D x 30"H
• Arm measures changes in arm edema. Rod level adjusts for different arm lengths. Use a pail as a receiver and weigh the overflow on a metric scale (not included). Siphon tubing included with deluxe model. 1000ml/10ml increments.

Foot Volumenter Kit

• Deluxe Foot, 13"W x 5"D x 9"H
• Foot measures changes in foot edema. Deluxe and economy both include receiver cup. Deluxe includes obturator to reduce surface area at level of overflow for more accurate readings. 1000ml/10ml increments.

Partial Leg Volumeter Kit

• Deluxe Partial Leg, 6"W x 24"D x 13"L
• Partial Leg measures changes in lef edema. Deluxe and economy both include receiving cup. Deluxe includes three risers measuring 1", 2" and 3" high to allow for adjustments of different lef lengths and enable measurement just below or above knee, obturator and siphon hose. 1000ml/10ml increments.
