BioStim INF

BioStim INF

BioStim INF

The BioStim INF device offers three pre-programmed sweeps, 1-10 Hz, used for Edema Reduction, 80-150 Hz used for Pain Relief and 1-150 Hz for total treatment allow for easy set up and patient instruction. The Device offers bipolar stimulation using two electrodes where the interferential stimulation is already "mixed" or Full Interferential stimulation with the use of four elec…

More details...

Availability : Available

Condition: New

KBSI

$150.00

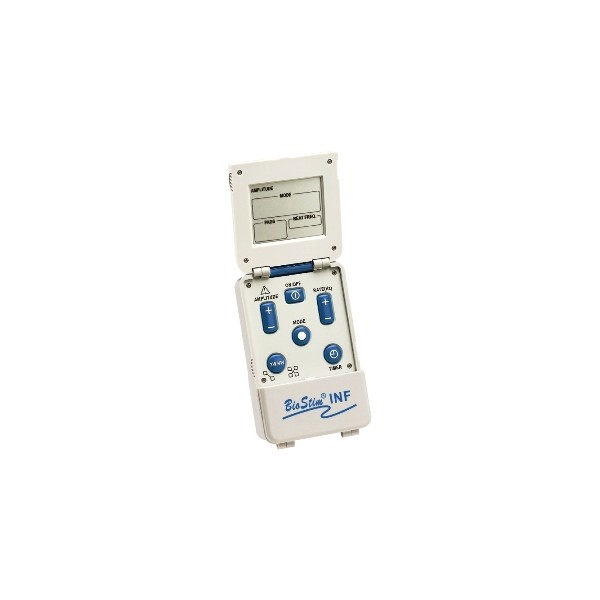

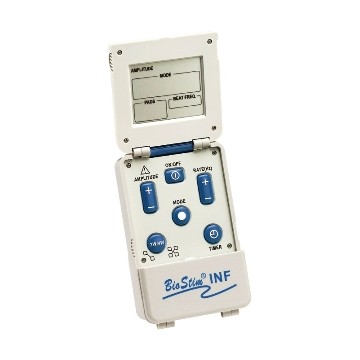

BioStim INF

The BioStim INF device offers three pre-programmed sweeps, 1-10 Hz, used for Edema Reduction, 80-150 Hz used for Pain Relief and 1-150 Hz for total treatment allow for easy set up and patient instruction. The Device offers bipolar stimulation using two electrodes where the interferential stimulation is already "mixed" or Full Interferential stimulation with the use of four electrodes. The device has a timer for the desired treatment time and operates from four AA batteries or the BioStim Wall Adaptor.

Specifications

  • Size: 3.25" x 2.25" x 1 5/8"(82 mm x 70 mm x 45mm)
  • Weight: 8 oz (226 grams)
  • Carrier Frequency: 4000 Hz, fixed
  • Interference Frequency: 4001-4150 Hz, adjustable
  • Difference Frequency: 1-150 beats per second, adjustable
  • Bipolar Stimulation: Channel 1
  • Output Current: 0-66 milliamps peak to peak with 500 ohm load
  • Output Voltage: 0-33 Volts peak to peak with 500 ohm load
  • Waveform: Pulsed Sine Wave
  • Pulse Width: 125 microseconds for each phase
  • Max. Charge per Cycle: 12.5 microcoulombs
  • Power Supply: 4 AA (L00083) batteries or optional BioStim Wall Adaptor
  • Low Battery Indicator: Indicates when batteries are low
  • Four Frequency Shifts: Continuous, 1-10 Hz over 6 seconds and 1-150 Hz over 6 seconds and 1-150 Hz over 10 seconds.
  • Tolerance: +/-1% (Output parameters are across a 500 ohm resistance)

Federal (U.S.A.) law restricts this device to sale by or on the order of a practitioner licensed by law of the State in which he/she practices to use or order the use of the device.
