INF PLUS

INF PLUS

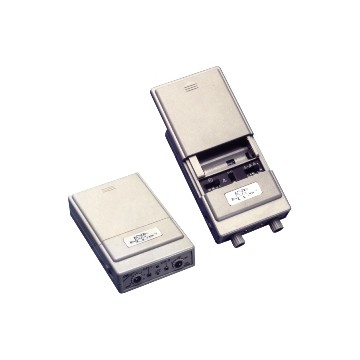

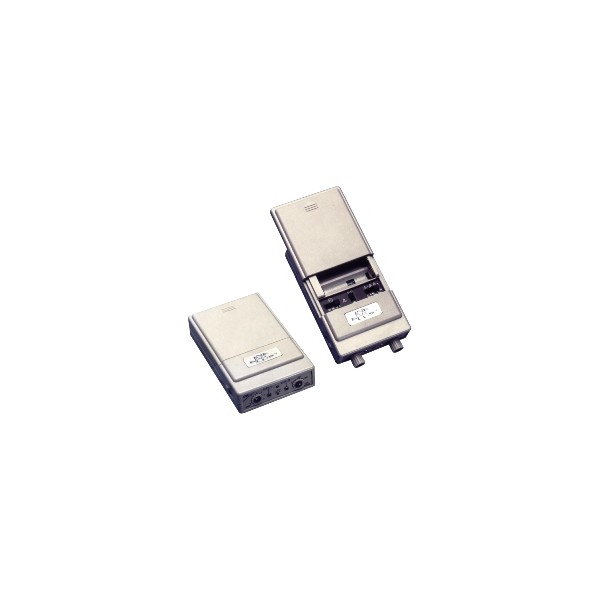

BioMedical Life Systems Inc. INF Plus Interferential Device utilizes Microprocessor technology, with tolerance levels of less than 1%, this portable device incorporates a sinusoidal wave form usually found only in large Clinical Models.

Three pre-programmed sweeps, 1-10Hz, used for Edema Reduction, 80 - 150 Hz used for Pain Relief, and 1 - 150 Hz used for Total Treatment allow for easy set up and patient instruction.

The Device offers Bipolar stimulation using two electrodes where the interferential stimulation is already mixed or Full interferential stimulation with the use of four electrodes.

The device has a timer for the desired treatment time, and operates on four AA batteries or an optional wall adaptor.

Specifications

• Size: 2.75" x 4.5" x 1.5" (6.9cm x 11cm x 3.8cm)
• Weight: 8.1oz (229 grams)
• Channels: Dual
• Waveform: Symmetrical sinusoidal biphasic (INF)
• Carrier Frequency:4000 Hz, Fixed
• Interference Frequency (adj): 4001 - 4150 Hz
• Continuous Stimulation (adj.): Difference Frequency 1-150 Hz
• Frequency Shifts (3):
• 1. 1 - 10 Hz over 6 seconds
• 2. 80 - 150 Hz over 8 seconds
• 3. 1 - 150 Hz over 10 seconds
• Output Current: 0 - 66 Milliamps peak to peak
• Output Voltage: 0 - 33 Volts peak to peak
• Intensity (adj.): 0-66 mA
• Power Supply: 4 AA Batteries
• Optional "Nova SeriesTM" wall adaptor Output parameters are across a 500 ohm resistance.

Federal (U.S.A.) law restricts this device to sale by or on the order of a practitioner licensed by law of the State in which he/she practices to use or order the use of the device.
